Unigraf UCD-422 is a video generator and analyzer for testing HDMI 2.1 interface up to 10K video modes. Resolutions supported are 4K@120Hz, 8K@60Hz and 10K@30Hz with uncompressed video. UCD-422 offers support for Forward Error Correction (FEC), and Display to

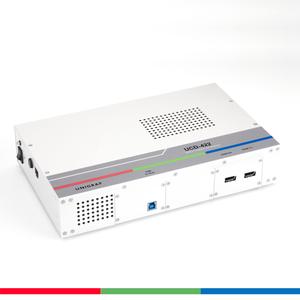

The Unigraf UCD-422 is a comprehensive HDMI 2.1 video generator and analyzer designed for testing HDMI interfaces up to 10K video modes. It supports resolutions including 4K at 120Hz, 8K at 60Hz, and 10K at 30Hz with uncompressed video. The device offers advanced features such as Forward Error Correction (FEC), Display Stream Compression (DSC), and support for Fixed Rate Link (FRL) signaling. UCD-422 is equipped with both video and audio testing capabilities, protocol analysis, and compliance testing tools, making it suitable for development, validation, and production environments. The unit is controlled via a PC over USB or Ethernet and includes Unigrafs UCD Console GUI for detailed analysis and reporting.
