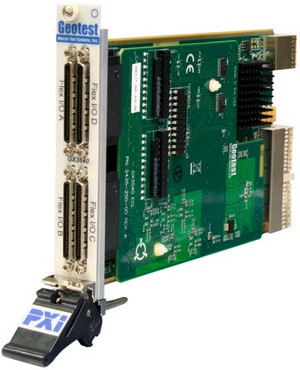

Marvin Test Solutions Inc. 3U PXI Card, ECL, Differential Line Driver/Receiver, 40 Differential Channels (GX3500 & GX3540)
- 20 output and 20 input ECL channels
- Read / Write control via a software front panel or API
- Configurable terminations for each ECL I/O signal
- Fully compatible with MECL 10KTM logic
- Configurable termination voltage, -2 V or -5.2 V
The GX3640 is comprised of the GX3500 FPGA card and the GX3540, 40 channel ECL expansion card. It is a 3U PXI instrument card that can be used for general data acquisition, process control, Automatic Test Equipment (ATE), and functional test applications. The GX3640 consists of 20 differential ECL drivers and 20 differential ECL receivers. Each channel can be accessed via software commands for use in static I/O applications.
