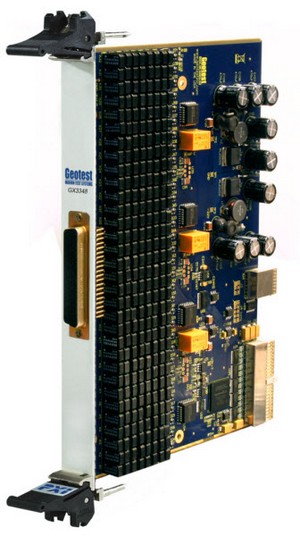

Marvin Test Solutions Inc. 48 Channel Analog I/O Card
- Three programmable DC outputs, -20 to +32 VDC
- Available with a 4 x 48 or 4 x 64 relay matrix configuration
- DC measurement capability on each channel
- 500 mA maximum current output
- External source input with switchable amplifier
The GX3348 is a multi-channel analog I/O 6U PXI card which provides (3) programmable sources, and a 4 x 48 or 4 x 64 matrix - allowing the user to route the 3 sources, or ground to any of the 48 or 64 I/O channels. In addition, each I/O channel can be connected to a 16-bit A to D converter, providing DC voltage measurement capability for each channel.
