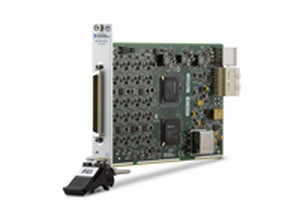

National Instruments Corporation NI PXIe-6614,8 channel counter/time module,high accuracy,40 DIO
- Event counting, period/frequency, encoder position, pulse-width measurement, pulse generation
- Eight 32-bit counter/timers and 40 bidirectional digital I/O lines
- High-precision oven-controlled crystal oscillator for long-term measurement stability and accuracy
- Simultaneous DMA controller for each counter/timer
- Maximum source frequency 100 MHz; 80 MHz from external sources
- X Series NI-STC3 timing chip for advanced triggering and synchronization
- Configure Complete PXI System
- Data Sheet
The NI PXIe-6614 is a high-performance counter/timer module designed for PXI Express systems, offering eight advanced counter/timer channels and 40 digital I/O lines. It features a high-accuracy onboard oscillator for precise timing and synchronization, making it suitable for applications such as event counting, frequency measurement, pulse generation, and digital pattern I/O. The module supports advanced triggering and timing functions, hardware-timed digital I/O, and is compatible with NI-DAQmx driver software for seamless integration into measurement and automation systems. The PXIe-6614 is engineered for high-speed, reliable operation in demanding test and measurement environments.
