Marvin Test Solutions Inc. GX1642 64 Channel 12-bit D/A, +/- 20V

GX1642 - Marvin Test Solutions Inc. 64 Channel 12-bit D/A, +/- 20V

Warranty: 1 Year
Shipping: FOB EXW
Ships in: 45 Days
Country of Origin: United States
SIN:
Part No: 3B992
GSA Schedule: Exp.:

U.S. Government, Military
and Contractors only
Price: Do you qualify for GSA Schedule?

Description

Marvin Test Solutions Inc. 64 Channel 12-bit D/A, +/- 20V

- 64 individual analog outputs
- 12-bit Resolution
- Output Range: -20 V to +20 V
- Output Current : ±10 mA per channel
- Simultaneous updating on all channels
- 3U PXI Instrument

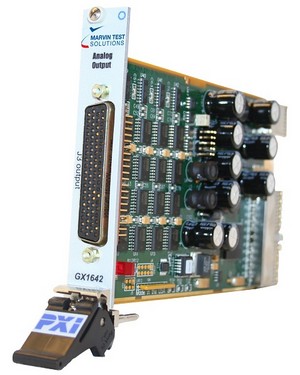

The GX1642 is a 3U PXI digital to analog output board is designed specifically for applications where multiple analog outputs are required. The GX1642 offers precision signal sourcing performance and quality at an economical price.

Additional Details

Type: New commercial
Calibration: New
