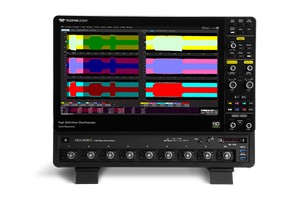

Teledyne LeCroy 500 MHz, 8 Ch, 12 bits, 10 GS/s, 50 Mpts/Ch Motor Drive Analyzer
The Motor Drive Analyzer is built on an 8 channel, 12-bit resolution oscilloscope platform. It acquires any signal and performs three-phase electrical and mechanical power calculations. It provides complete power section and embedded control test coverage.
The Teledyne LeCroy MDA8058HD is a Motor Drive Analyzer that combines the capabilities of an 8-channel, 12-bit, 500 MHz bandwidth oscilloscope with advanced motor drive analysis tools. It offers a maximum sample rate of 10 GS/s and a memory depth of 50 Mpts per channel, enabling detailed capture and analysis of complex motor drive signals. The MDA8058HD is designed for three-phase electrical and mechanical power analysis, inverter drive debug, and embedded control system validation. It features specialized software for automatic calculation and display of key motor parameters, including speed, torque, and power, as well as advanced triggering and decoding for serial protocols commonly used in motor control applications.
