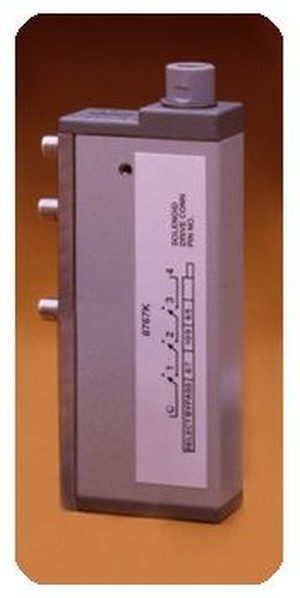

Keysight Technologies Inc. Coaxial switch, single pole, 4 throw, DC-26.5 GHz
The Keysight 8767K single-pole, four-throw microwave switch utilizes the same proven technology as Keysight's 849X family of step attenuators. It offers rugged reliability, excellent repeatability (typically 0.01 dB to 18 GHz and 0.05 dB to 26.5 GHz), long life (greater than five million switching cycles) and compactness. Switching time is less than 20 ms, including contact settling time. The switch includes self-interrupting contacts which minimize power consumption and simplify the driver circuit design. A wide range of solenoid voltage choices (24 volts standard or, optionally, 5 or 15 volts) is available to match the requirements of your product or system.
- 5 million cycles
- 0.03 dB repeatability
- Unterminated
- Current interrupts and position indication capability
- Exceptional isolation
- Easy GPIB implementation for ATE applications
