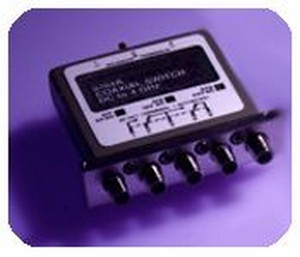

Keysight Technologies Inc. Switch, coaxial, 5 port, DC-4 GHz, SMA connectors
The Keysight 8764A offers excellent electrical and mechanical performance with broadband operation, high isolation, low SWR, long life, and exceptional repeatability.
Buy only the performance you need! Keysight offers a new line of latching coaxial switches that combine legendary reliability with the widest range of performance options available today. Learn more at: N1812UL Coaxial Switch
- Frequency range DC to 4 GHz
- Unterminated multiport coaxial switch with five RF ports
- Insertion loss: < 0.20 dB to 2 GHz, < 0.25 dB to 4 GHz
- SWR (through line): < 1.1 to 2 GHz, < 1.2 to 4 GHz
- Isolation: > 100 dB to 4 GHz
- Long life > 1 million cycles
- High repeatability: < 0.03 dB typical
- Current interrupts and position indication capability
