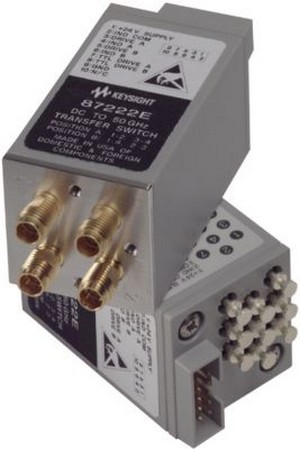

Keysight Technologies Inc. Switch, transfer, DC-50 GHz, 4-port, 24 VDC
Flexibility is essential in signal routing applications, and the Keysight 87222E 4-port coaxial transfer switch offers just that. It provides exceptional repeatability, low insertion loss, and high isolation. These switches provide simplification of design in signal routing and conditioning applications. The Keysight 87222E can be used in a variety of applications such as, a drop-out switch, switching two inputs and two outputs, or signal reversal switching.
Excellent RF repeatability & long life span
- Exceptional repeatability of 0.03 dB
- Guaranteed performance up to 5 million cycles
Superior RF Performance
- Excellent isolation, typically >90 dB at 26.5 GHz, >60 dB at 50 GHz
- Opto-electronic indicators and interrupts
- Magnetic latching
- TTL/5V CMOS compatible
