11667L - Keysight Technologies Inc. Power Splitter, DC-2 GHz, BNC, 50 ohm

Keysight Technologies Inc. Power Splitter, DC-2 GHz, BNC, 50 ohm

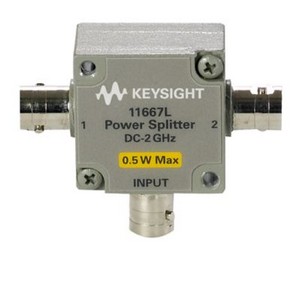

The Keysight 11667L is a 50 ohm two-resistor type power splitter with BNC connectors. It is used with the E5061B network analyzer for power distribution network applications, such as DC-DC converter output impedance measurements with shunt-thru method (100 Hz to 10 MHz). It provides excellent amplitude (<0.2 dB) and phase tracking (+/-3), ensures highly accurate power splitting and low SWR minimizes measurement uncertainty.

Superior RF performance

• Equivalent output SWR: 1.78
• Maximum input power: 0.5 W
• Insertion loss: 6.6 dB
• Tracking between any two ports: <0.2 dB
