Keysight Technologies Inc. 11667A DC-18 GHz power splitter, Type-N, 50 ohm

11667A - Keysight Technologies Inc. DC-18 GHz power splitter, Type-N, 50 ohm

Warranty: 3 Years
Shipping: FOB DPU
Ships in: 5 Weeks
Country of Origin: Singapore
SIN:
Part No:
GSA Schedule: Exp.:

U.S. Government, Military
and Contractors only
Price: Do you qualify for GSA Schedule?

Description

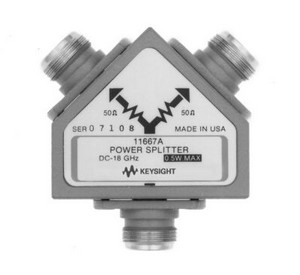

Keysight Technologies Inc. DC-18 GHz power splitter, Type-N, 50 ohm

The Keysight 11667A power splitter is recommended when making wideband ratio measurements using a Keysight 8757 scalar network analyzer. This two-resistor type power splitter provides excellent output SWR at the auxilliary arm when used for source leveling or ratio measurement applications. The tracking between output arms over a frequency range from dc to 18 GHz allows wideband measurements to be made with a minimum of uncertainty.


Superior RF performance

  • Equivalent output SWR: 1.33
  • Maximum input power: 0.5 W
  • Insertion loss: 7 dB
  • Tracking between any two ports: 0.20 dB to 8 GHz

Additional Details

Type: New commercial
Calibration: New
