Keysight Technologies Inc. 11612A Bias network

11612A - Keysight Technologies Inc. Bias network

Warranty: 3 Years
Shipping: FOB DPU
Ships in: 5 Weeks
Country of Origin: Singapore
SIN:
Part No:
GSA Schedule: Exp.:

U.S. Government, Military
and Contractors only
Price: Do you qualify for GSA Schedule?

Description

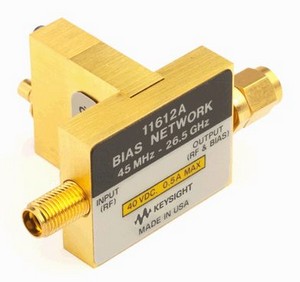

Keysight Technologies Inc. Bias network

The Keysight 11612A broadband high power bias network can be used in a wide variety of biasing applications for test and measurement requirements in laboratory and production environments. Bias networks provide the means of supplying DC bias to the center conductor of the coax connector for your device while blocking the DC to the RF port.

  • Frequency Range: 45 MHz to 26.5 GHz
  • Insertion loss (dB): 0.8 (<12.4 GHz), 1.3 (<26.5 GHz)
  • Maximum SWR (dB): 1.22 (<8 GHz), 1.29 (<18 GHz), 1.5 (<26.5 GHz)
  • Impedance: 50 ohms
  • RF Power: +24 dBm max
  • Bias current: 500 mA
  • Bias voltage: 40 V
  • Standard connectors: RF input-3.5mm (f), RF output-3.5mm (m), DC bias-SMB (m)
  • Cable: SMB (f) to BNC (m) included
  • Temperature: Warranted performance over 0 to 55 degrees C unless otherwise noted.

  • Frequency Range: 45 MHz to 26.5 GHz
  • Insertion loss (dB): 0.8 (<12.4 GHz), 1.3 (<26.5 GHz)
  • Maximum SWR (dB): 1.22 (<8 GHz), 1.29 (<18 GHz), 1.5 (<26.5 GHz)
  • Impedance: 50 ohms
  • RF Power: +24 dBm max
  • Bias current: 500 mA
  • Bias voltage: 40 V
  • Standard connectors: RF input-3.5mm (f), RF output-3.5mm (m), DC bias-SMB (m)

Additional Details

Type: New commercial
Calibration: New
