Keysight Technologies Inc. 256-Channel Armature Relay Multiplexer.
- 1-Slot, C-size, register based
- High-density, low-cost multiplexer
- Flexible reconfiguration
- Armature non-latching relay channels
- Contact protection for reliable operation
- Three different easy-to-use terminal blocks available as options

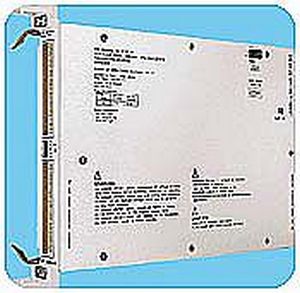

The Keysight E8462A High-Density Relay Multiplexer is a C-size, 1-slot, register-based VXI module. This 256-channel multiplexer, using non-latching armature relays, offers a fast, reconfigurable, high point-count switching topology. This single-slot multiplexer extends the choices of multiplexers available to the system engineer.
The E8462A can be programmed into individual topologies, including two-wire, three-wire, and four-wire measurement configurations. See the attached Data Sheet for more information about this product and its capabilities.
