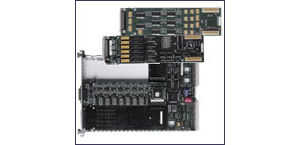

VTI Instruments VM1548C 48-channel I/O, Open Collector
Feature:
Number Of I/O Channels: 48ch
Input/Output Level: Open-Collector
Six Groups of 8 I/O Bits Each
Up to 144 Channels per Single VXIbus C-size Slot
Message or Register-based Data Access
ASCII, Hex, Octal, and Binary Data Output Types
TTL or up to 60V, 300mA Open-collector
Flexible Triggering and Handshaking Capability
SCPI Compatible
VXIplug&play Drivers
DataAccess Typ: Direct Register or Messa
Data I/P Clock Source: Front Pannel, TTL
Colcked I/P Data Setup : 2us
Clocked Input Data Hold: 80ns
User Connector: 68-pin SCSI-2 Compatible
