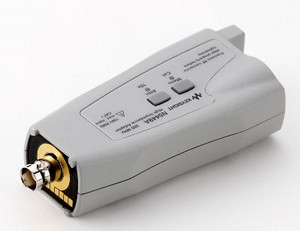

Keysight Technologies Inc. High Impedance Adapter for Infiniium Oscilloscopes (SMA to BNC)
The N5449A high impedance adapter allows connection of probes that require a high impedance input to the Infiniium 90000-x Series oscilloscopes. The adapter allows you to use a high impedance passive probe, 1147A AC/DC current probe or N2790A high voltage differential probe with the Infiniium 90000-x Series oscilloscope. The adapter comes with a N2873A 500 MHz 10:1 passive probe.
The Keysight N5449A High Impedance Adapter is designed for use with Infiniium oscilloscopes, providing a high impedance (10 M©, 1.5 pF) input path for signals via a BNC connection. This adapter allows users to connect standard passive probes or other BNC-cabled accessories to oscilloscopes equipped with SMA inputs, enabling flexible signal access and measurement. The N5449A is ideal for applications requiring high input impedance to minimize circuit loading, and it supports bandwidths up to 500 MHz. The adapter is compatible with a range of Infiniium oscilloscope models, ensuring reliable signal integrity and measurement accuracy.
