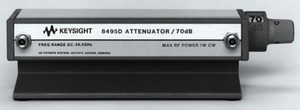

8495D - Keysight Technologies Inc. 0-70dB manual step attenuator, 0-26.5GHz

Keysight Technologies Inc. 0-70dB manual step attenuator, 0-26.5GHz

The Keysight 8495D dc to 26.5 GHz manual step attenuator offers exceptional repeatability and reliability. Attenuation is provided in 10 dB steps from 0 to 70 dB. Precision gold-plated leaf springs ensure long life (over 5 million cycles) and very high attenuator repeatability (typically 0.01 dB). To improve measurement accuracy, NIST traceable data (SWR and attenuation) is available as Option UK6. Custom step attenuator/switch combinations are possible. The Keysight 11716A/B/C interconnect kits provide quick connection of Keysight 8494/5/6/7 1 dB and 10 dB step attenuators in series for greater dynamic range with 1 dB steps.

Superior RF Performance

• Frequency range: dc to 26.5 GHz
• Insertion loss at 0 dB: 0.4 dB + 0.09 dB/GHz
• Maximum SWR: 1.6 to 12.4 GHz, 1.9 to 18 GHz, 2.2 to 26.5 GHz

Repeatability and Life Span

• Repeatability life: 0.03 dB max 5 million cycles per section, typical
• 5 million cycles per section

Power handling

• Maximum RF input power: 1 W (average), 100 W (peak)

Features

• Connector type: 3.5 mm female
