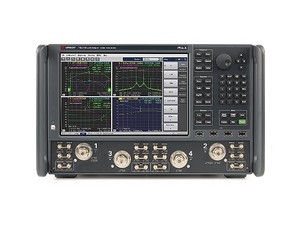

Keysight Technologies Inc. 10 MHz to 43.5 GHz PNA-X network analyzer
Measure amplitude and phase of the full device spectra, traceable to National Institute of Science & Technology (NIST)
10 MHz to 50 GHz of vector corrected bandwidth for time domain waveforms of voltage and currents of DUTs
The Keysight N5244B is a high-performance PNA-X network analyzer designed for advanced measurement applications. Operating from 10 MHz to 43.5 GHz, it integrates multiple measurement capabilities into a single instrument, including S-parameter, gain compression, intermodulation distortion, and noise figure measurements. The N5244B features a flexible architecture with two or four ports, internal signal sources, and a wide dynamic range, making it suitable for characterizing active and passive devices. Its modular design supports a variety of options for enhanced measurement speed, accuracy, and automation, catering to R&D and manufacturing environments.
