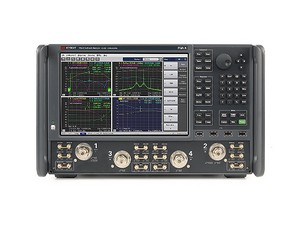

Keysight Technologies Inc. 10 MHz to 26.5 GHz PNA-X network analyzer
Measure amplitude and phase of the full device spectra, traceable to National Institute of Science & Technology (NIST)
10 MHz to 50 GHz of vector corrected bandwidth for time domain waveforms of voltage and currents of DUTs
The Keysight N5242B is a high-performance PNA-X network analyzer designed for advanced measurement applications in R&D and manufacturing environments. Operating from 10 MHz to 26.5 GHz, it integrates multiple measurement capabilities into a single instrument, including S-parameter, gain compression, intermodulation distortion, and noise figure measurements. The N5242B features a flexible architecture with two or four ports, internal signal sources, and a range of measurement applications to support linear and nonlinear device characterization. Its modular design allows for future upgrades, and it offers high dynamic range, fast measurement speed, and low trace noise, making it suitable for testing amplifiers, mixers, and other RF components.
