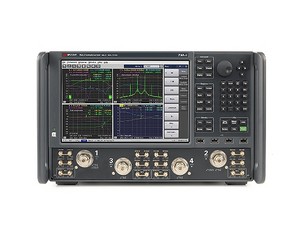

Keysight Technologies Inc. 10 MHz to 13.5 GHz PNA-X network analyzer
Measure amplitude and phase of the full device spectra, traceable to National Institute of Science & Technology (NIST)
10 MHz to 50 GHz of vector corrected bandwidth for time domain waveforms of voltage and currents of DUTs
The Keysight N5241B is a PNA-X network analyzer that operates from 10 MHz to 13.5 GHz. It is designed for high-performance microwave component characterization, offering a flexible and integrated solution for measuring S-parameters, gain compression, intermodulation distortion, and other nonlinear device parameters. The N5241B features a built-in second source, internal signal combiner, and pulse modulators, enabling advanced measurements such as mixer/converter testing and nonlinear device analysis. Its architecture supports fast measurement speed, high dynamic range, and low trace noise, making it suitable for R&D and manufacturing environments. The analyzer is equipped with a large touchscreen display and intuitive user interface, and supports a wide range of measurement applications through optional software. The N5241B is part of Keysight's PNA-X family, known for its versatility and measurement accuracy.
