Keysight Technologies Inc. 83017A Amplifier, 0.5-26.5 GHz; 25 dB gain

83017A - Keysight Technologies Inc. Amplifier, 0.5-26.5 GHz; 25 dB gain

Warranty: 1 Year
Shipping: FOB Origin
Ships in: 5 Weeks
Country of Origin: Singapore
SIN:
Part No:
GSA Schedule: Exp.:

U.S. Government, Military
and Contractors only
Price: Do you qualify for GSA Schedule?

Description

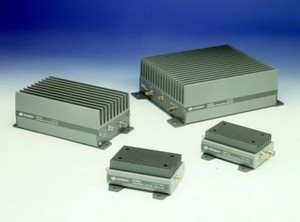

Keysight Technologies Inc. Amplifier, 0.5-26.5 GHz; 25 dB gain

The Keysight 83017A microwave system amplifier is a compact, off-the-shelf amplifier designed for systems designers and integrators. This amplifier provides power where you need it to recover system losses and to boost available power in RF and microwave ATE systems. The ultrabroad bandwidth from 500 MHz to 26.5 GHz allows the designer to replace several narrow bandwidth amplifiers with a single Keysight amplifier, eliminating the need for crossover networks or multiple bias supplies.


Superior RF performance

  • Gain of more than 25dB
  • P1dB of more than 18dBm to 20GHz
  • Noise figure of less than 8dB to 18GHz,13dB to 26.5GHz (typ)

Connectors Type

  • Rf connectors: 3.5mm(f)
  • DC Detector output connector: BNC (f)

Bias Option

  • +12V@700mA,-12V@50mA
  • Works with 87421A 25 W Power Supply
  • Works with 87422A 70 W Power Supply

Additional Details

Type: New commercial
Calibration: New
