Product specs for Tektronix THS720A

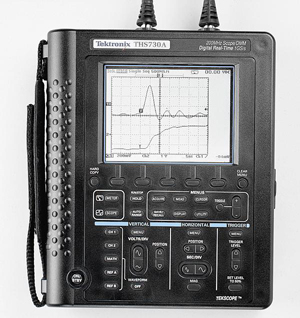

Tektronix THS720A

Product Description:


The Tektronix THS720A oscilloscope is a graph-displaying device – it draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis.

The Tektronix THS720A oscilloscope's simple graph can tell you many things about a signal, such as: the time and voltage values of a signal, the frequency of an oscillating signal, the “moving parts” of a circuit represented by the signal, the frequency with which a particular portion of the signal is occurring relative to, other portions, whether or not a malfunctioning component is distorting the signal, how much of a signal is direct current (DC) or alternating current (AC) and how much of the signal is noise and whether the noise is changing with time.

The TekScope THS700 Series Scope/DMM combines a full-featured real-time oscilloscope with a True RMS digital multimeter in rugged, battery-operated instruments. Scope and meter modes can operate simultaneously and independently on the same or separate signals. The high-resolution, backlit display and pop-up menus make it easy for users to take full advantage of the instrument's many features. These include cursors, video trigger, voltage and resistance measurements and storage of waveforms, data and instrument setups. In addition, they offer the most comprehensive triggering capabilities - external trigger and extensive triggering including delay, pulse width and video.

The THS700A Series is ideal for electronic applications - at the bench or at the site.

The THS700A Series shares measurement features with the THS720P Scope/DMM which includes features to address the needs of electric/power electronics measurements.
DC Gain Accuracy - ±2%
Automatic Waveform Measurements : Period,Frequency,High,Low,PositiveWidth
Negetive Width,Maximum,Minimum,Rise,Fall,Peak to Peak,Amplitude
Positive Duty cycle,Negetive Duty cycle,Positive Overshoot
Negetive Overshoot, Propagation delay,Burst width,Mean,Cycle mean,RMS
Cycle RMS,Area,Cycle area Phase DMM Specifications : DC Voltage Ranges : 400.0 mV to 880 V. DC Volts Accuracy : ±(0.5% of reading + 5 counts) True RMS AC Voltage Ranges : 400.0 mV to 640 V Maximum Float Voltage : 600 VRMS CAT II, each channel (probe dependent) Resolution : 4000 count, 3-3/4 digits AC Volts Accuracy : ±(2% of reading + 5 counts) Resistance Ranges : 400.0 Ohm to 40.00 megaohm Resistance Accuracy : ±(0.5% of reading + 2 counts); 40 megaohm: ±(2% of reading + 5 counts) Diode Test Range : 0 to 2 V Continuity Check : Audible tone when < 50 Ohm Modes : Min, Max, Delta, Max-Min, Avg, Hold Nonvolatile Storage : 10 DMM screenshots External Trigger Input : 5 MHz TTL compatible Vertical Zoom Capability : 2X, 5X, 10X dB Scale : Selectable, referenced from 1 mV to 10 V dBm Scale : Selectable, referenced from 50 Ohm to 600 Ohm

More Tektronix savings

Using Raspberry Pi to Control Your Oscilloscope
Webinar: Getting Most Out of Touchscreen Scope
Webinar: 5 Series B
5 Series B MSO - Performance for today and tomorrow
5 Series B MSO - Intuitive Controls
5 Series B MSO - Insightful Measurements
5 Series B MSO - Multi-Channel Spectrum Analysis
5 Series B MSO - Technical Overview
3 New Features with the 3 Series MDO Firmware Update
Measuring the Control Loop Response of a Power Supply
6 Series B MSO Mixed Signal Oscilloscopes
6 Series B MSO Mixed Signal Oscillosope Upgrades
Tektronix/Keithley 2019-2020 Test & Measurement Solutions
3 Series MDO and 4 Series MSO Fact Sheet
3 Series MDO vs MDO3000
RSA7100A - Don't Fail on the Range
Reduce Design Risk with High-Performance COTS EW/Radar Receivers
What You Can't See CAN Hurt You
Test Solutions for Military & Government Programs
Real-Time Optimization for Size, Weight and Power (SWAP)
Delightful Analysis.
Advanced Power Measurement Capability
RSA500 Series
Watch us drop our Spectrum Analyzer from the top of a building!
6 Instruments.1 Scope. Infinite Versatility.
Tektronix THS720A
