Product Description:
Keysight Technologies Inc. E4440A PSA Spectrum Analyzer 3 Hz - 26.5 GHz
The Keysight Technologies Inc. E4440A spectrum analyzer is a wide band, very sensitive receiver. It works on the principle of "super-heterodyne receiver" to convert higher frequencies (normally ranging up to several 10s of GHz) to measurable quantities. The received frequency spectrum is slowly swept through a range of pre-selected frequencies, converting the selected frequency to a measurable DC level (usually logarithmic scale), and displaying the same on the CRT of the Keysight Technologies Inc. E4440A. The CRT displays received signal strength (y-axis) against frequency ( x-axis).
Some applications for Keysight Technologies Inc. E4440A Spectrum Analyzers include Site Monitoring: Verify that the frequency and signal strength of your transmitter is accurate. Interference: Before a system is installed you use a Keysight Technologies Inc. E4440A spectrum analyzer to verify that the frequencies (you plan to use) are not occupied or if the presence of a very strong signal will interfere with your new setup. Interference can be created by a number of different situations. Other tests that utilize the Keysight Technologies Inc. E4440A spectrum analyzer features include antenna isolation, co-channel interference, adjacent channel power, occupied bandwidth, intermodulation, microwave or satellite antenna alignment, and characterization of components.
High-performance spectrum analysis up to 50 GHz and beyond with powerful one-button measurements, a versatile feature set, and a leading-edge combination of flexibility, speed, accuracy, and dynamic range. From millimeter wave and phase noise measurements to spur searches and modulation analysis, the PSA Series offers unique and comprehensive high-performance solutions to R&D; and manufacturing engineers in cellular and emerging wireless communications, aerospace, and defense. Use with KEYSIGHT 89601A Vector Signal Analysis software for powerful flexible signal and modulation analysis for communications and RADAR.
Key Features & Specifications
Performance
- +/-0.19 dB absolute amplitude accuracy
- -155 dBm (-169 dBm w/preamp) displayed average noise level (DANL)
- -118 dBc/Hz phase noise at 10 kHz offset
- 81 dB W-CDMA ACLR dynamic range
Analysis bandwidth
- 10 MHz analysis bandwidth (Option B7J for the Basic mode)
- Optional 40 or 80 MHz analysis bandwidth to capture and measure complex signals.
- -78 dB (nominal) third order intermodulation for 40 or 80 MHz analysis bandwidth
- Up to 300 MHz analysis bandwidth for calibrated VSA measurements
Flexibility
- Flexible platform with 16 optional, easy-to-use built-in measurement personalities and hardware options
- Keysight's PowerSuite one-button power measurements included as standard
- MATLAB data analysis software for general purpose data analysis, visualization, and measurement automation.
Description
The Keysight E4440A PSA high-performance spectrum analyzer measures and monitors complex RF and microwave signals up to 26.5 GHz. With optional external mixing, the frequency coverage expands to 110 GHz by Keysight external mixer, and to 325 GHz by other vendors' mixer.
Migration from PSA to PXA:
The PXA N9030A, Keysights next-generation high-performance signal analyzer, combines the PSAs technical excellence with state-of-the-art technologies, making it a logical form-fit-functional replacement for the PSA. The new PXA N9030A offers greater performance, wider analysis bandwidth, and more powerful connectivity. Why migrate from the PSA to the PXA?
More Keysight Technologies Inc. savings
|

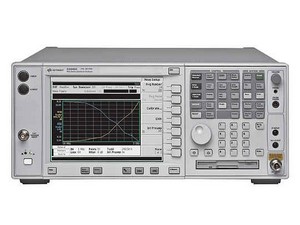

| Stock photo |
