Product Description:
Anritsu MS2661C Spectrum Analyzer (9kHz to 3 GHz)
The Anritsu MS2661C spectrum analyzer is a wide band, very sensitive receiver. It works on the principle of "super-heterodyne receiver" to convert higher frequencies (normally ranging up to several 10s of GHz) to measurable quantities. The received frequency spectrum is slowly swept through a range of pre-selected frequencies, converting the selected frequency to a measurable DC level (usually logarithmic scale), and displaying the same on the CRT of the Anritsu MS2661C. The CRT displays received signal strength (y-axis) against frequency ( x-axis).
Some applications for Anritsu MS2661C Spectrum Analyzers include Site Monitoring: Verify that the frequency and signal strength of your transmitter is accurate. Interference: Before a system is installed you use a Anritsu MS2661C spectrum analyzer to verify that the frequencies (you plan to use) are not occupied or if the presence of a very strong signal will interfere with your new setup. Interference can be created by a number of different situations. Other tests that utilize the Anritsu MS2661C spectrum analyzer features include antenna isolation, co-channel interference, adjacent channel power, occupied bandwidth, intermodulation, microwave or satellite antenna alignment, and characterization of components.
Feature:Minimum Frequency: 9kHz
Maximum Frequency: 3GHz
BUILT-IN FUNCTIONS
* Frequency counter
* C/N
* Adjacent channel power
* Occupied frequency bandwidth
* Burst avearge power
* Noise power
* PASS/FAIL limit lines The MS2661C Portable Spectrum Analyzer is for signal analysis of radio and other equipment related to improving frequency usage efficiency, higher modulation, and digitalization. This is a synthesized spectrum analyzer covering a wide frequency range from 9 kHz to 3 GHz. It has superior basic performance such as high C/N ratio, low distortion, and high frequency/level accuracies and is easy to operate. It has a "Measure" function for evaluation of radio equipment (frequency counter, C/N, adjacent channel power, occupied frequency bandwidth, burst average power, and template decision function), and which enables the two-screen display and FM demodulation waveform display. The large selection of options means that a wider range of applications can be handled at reasonable cost.
Features
- Range: 9 kHz to 3 GHz
- Power: -100 dBm
- Resolution: 1 Hz
Supplied with:- Power cord, 2.6 m
- Fuse, 5 A (2 ea)
- MS2650B, MS2660B/C series operation manual
- Front cover (3/4MW4U)
More Anritsu savings
|

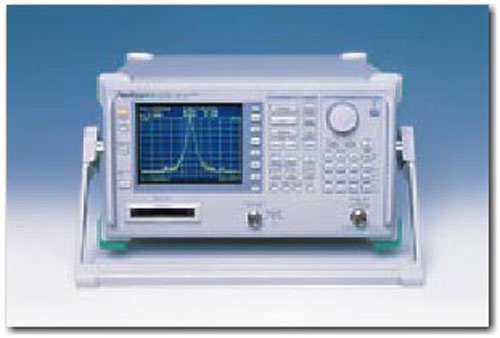

| Stock photo |
