Tektronix TDS420 Oscilloscope, Digital: 150MHz,100MSa/s,4ch (Stand alone)
The Tektronix TDS420 oscilloscope is a graph-displaying device – it draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis.
The Tektronix TDS420 oscilloscope's simple graph can tell you many things about a signal, such as: the time and voltage values of a signal, the frequency of an oscillating signal, the “moving parts” of a circuit represented by the signal, the frequency with which a particular portion of the signal is occurring relative to, other portions, whether or not a malfunctioning component is distorting the signal, how much of a signal is direct current (DC) or alternating current (AC) and how much of the signal is noise and whether the noise is changing with time.
Feature:Bandwidth: 150MHz
No. of channels: 4ch
Max. single ch. sampling rate: 100MSa/s
TDS 400 Digitizing Oscilloscopes
For demanding precision measurement applications requiring high accuracy and acquisitions confidence, the simple to use portable TDS 400 family offers a choice of two channel and four channel models ranging from 150 to 350MHz. 100MS/s on all channels coupled with a choice of FFT Math, Video, Long Record Length options makes analysis work extremely simple.
Features:
- 150 and 350MHz Bandwidths
- 100MS/s Sampling Rate on 4 channels
- 15K Records Standard, 60K Optional
- 1.5% Accuracy; 1mV/div - 10V/div
- Proprietary Hi-Res Mode for up to 12-bits of Single Shot Vertical Resolution
- Extended Waveform Math/FFT (Option)
- 10ns Peak Detect Mode for Glitch Capture
- 25 Automatic Measurements
- Pass/Fail (Template) Waveform Testing
- Roll and Triggered Roll Modes
- RS-232 and Centronics Type Interfaces
- Tek Secure 25 automatic meas.
roll and trig modes
auto setup
Pass/Fail testing
Graphic User Interface
More Tektronix savings
|

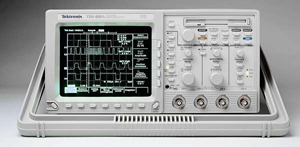

| Stock photo |
