Product Description:
Tektronix TDS2022 OSCILLOSCOPE; DIGITAL STORAGE, 200 MHZ, 2 GS/S, 2-CH, COLOR DISPLAY, CERTIFICATE OF TRACEABLE CALIBRATION STANDARD
The Tektronix TDS2022 oscilloscope is a graph-displaying device – it draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis.
The Tektronix TDS2022 oscilloscope's simple graph can tell you many things about a signal, such as: the time and voltage values of a signal, the frequency of an oscillating signal, the “moving parts” of a circuit represented by the signal, the frequency with which a particular portion of the signal is occurring relative to, other portions, whether or not a malfunctioning component is distorting the signal, how much of a signal is direct current (DC) or alternating current (AC) and how much of the signal is noise and whether the noise is changing with time.
- 200MHz Bandwidth
- 2 GS/s Sample Rate
- 2 Channels
- Color LCD Display
- Autoset Menu with Waveform Selection
- Probe Check Wizard to Ensure Correct Probe Usage
- Context-sensitive Help
- Dual Time Base
- Advanced Triggering
- 11 Automatic Measurements
- Waveform and Setup Memories
- FFT Standard
This model is delivered with:- P2200 200MHz 10X-1X Switchable Passive Probe (2 ea.)
- User Manual
- Power Cord
- NIM/NIST-Traceable Cert. of Calibration
More Tektronix savings
|

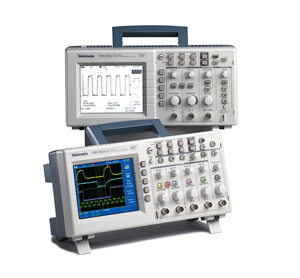

| Stock photo |
