Product Description:
Agilent Technologies, Inc. DSO6104A Oscilloscope, 4-channel, 1 GHz
The Agilent Technologies, Inc. DSO6104A oscilloscope is a graph-displaying device – it draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis.
The Agilent Technologies, Inc. DSO6104A oscilloscope's simple graph can tell you many things about a signal, such as: the time and voltage values of a signal, the frequency of an oscillating signal, the “moving parts” of a circuit represented by the signal, the frequency with which a particular portion of the signal is occurring relative to, other portions, whether or not a malfunctioning component is distorting the signal, how much of a signal is direct current (DC) or alternating current (AC) and how much of the signal is noise and whether the noise is changing with time.
Key Features & Specifications
Lab scope performance at a portable scope price
- 1 GHz Bandwidth
- 4 analog channels
- 4 GSa/s sample rate
- Standard 8 Mpts MegaZoom III deep memory
The Fastest Way to Debug your design
- Fastest update rate in the industry at 100,000 waveforms/sec
- Digital debug for FPGAs with specific Xilinx and Altera applications
- Real-time hardware-based serial decode for I2C, SPI, CAN, LIN, RS232/UART and I2S
View online videos for a virtual demonstrations
- See 6000 series scopes in action
More information
- Standard 3-year return-to-Agilent warranty
- MATLAB software available directly from Agilent for making your own custom measurement and analysis routines, user-defined filters, or instrument applications. MATLAB software for Agilent oscilloscopes
Description
Gain superior insight into analog, digital, or serial design challenges. The DSO6104A oscilloscope offers MegaZoom III deep memory, the highest definition color display with 256 levels of intensity and the fastest uncompromised update rate of 100,000 waveforms/sec of any scopes in its class.
Consider the battery power option
|

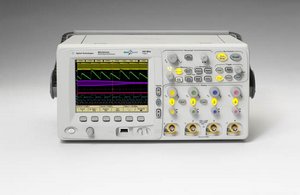

| Stock photo |
