Product Description:

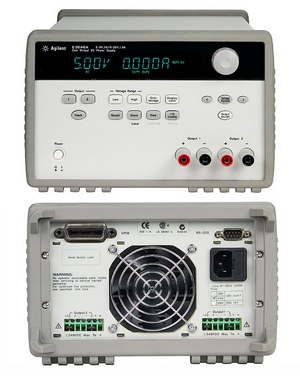

Agilent Technologies, Inc. E3648A DC power supply, dual output, dual range: 0-8V/ 5A and 0-20V/ 2.5 A, 100 W. GPIB
Key Features & Specifications
Output ratings (@ 0C to 40C) 2 outputs
- Range 1: 0 to 8 V / 5 A
- Range 2: 0 to 20 V / 2.5 A
Programming accuracy (@ 25C 5C), (% output + offset)
- Voltage: <0.05% + 10 mV (<0.1% + 25 mV for output 2 of E3646/47/48/49A)
- Current: <0.2% + 10 mA
Ripple & noise 20 Hz to 20 MHz
- Normal Mode Voltage: <5 mVpp / 0.5 mVrms
- Normal Mode Current: <4 mArms
- Common Mode Current: <1.5 uArms
Readback accuracy (@ 25C 5C), (% output + offset)
- Voltage: <0.05% + 5 mV (<0.1% + 25 mV for output 2 of E3646/47/48/49A)
- Current: <0.15% + 5 mA (<0.15% + 10 mA for output 2 of E3646/47/48/49A)
Description
This content requires the Adobe Flash Player.
Get Flash
Agilent basic DC power supplies offer essential features for a tight budget. The single & dual output, 30-100 W GPIB E3640 series provide small, compact size for bench and system use; low output ripple and noise; and built-in measurements and basic programmable features with GPIB and RS232 interface. The Agilent 90W, multiple output E3648A is a clean, reliable power supply for general purpose applications, and combine convenient benchtop capabilities with flexible system features in a compact, multi-output package.
DC power needs to be steady as a rocklike a rock for 15 years. Find out how
|
