Product Description:
Agilent Technologies, Inc. E3642A DC power supply, dual range: 0-8V/ 5A and 0-20V/ 2.5A, 50 W. GPIB, RS-232
Key Features & Specifications
Output ratings (@ 0C to 40C)
- Range 1: 0 to 8 V / 5 A
- Range 2: 0 to 20 V / 2.5 A
Programming accuracy (@ 25C 5C), (% output + offset)
- Voltage: <0.05% + 10 mV (<0.1% + 25 mV for output 2 of E3646/47/48/49A)
- Current: <0.2% + 10 mA
Ripple & noise 20 Hz to 20 MHz
- Normal Mode Voltage: <5 mVpp / 0.5 mVrms
- Normal Mode Current: <4 mArms
- Common Mode Current: <1.5 uArms
Readback accuracy (@ 25C 5C), (% output + offset)
- Voltage: <0.05% + 5 mV (<0.1% + 25 mV for output 2 of E3646/47/48/49A)
- Current: <0.15% + 5 mA (<0.15% + 10 mA for output 2 of E3646/47/48/49A)
Description
This content requires the Adobe Flash Player.
Get Flash
Agilent basic DC power supplies offer essential features for a tight budget. The single & dual output, 30-100 W GPIB E3640 series provide small, compact size for bench and system use; low output ripple and noise; and built-in measurements and basic programmable features. The Agilent 50W, single output E3642A is a stable and reliable power supply for benchtop and basic automated test applications, and enables versatile solutions for tests that require moderate speed and precision with both GPIB and RS232.
DC power needs to be steady as a rocklike a rock for 15 years. Find out how.
|

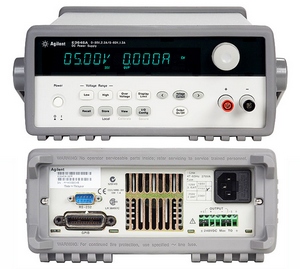

| Stock photo |
