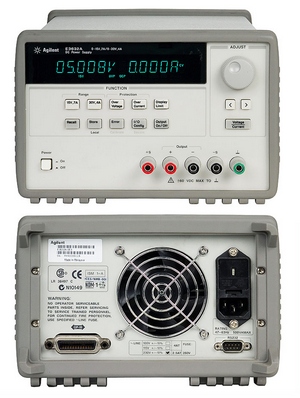

Product specs for Agilent Technologies, Inc. E3632A

Output ratings

• Range 1: 0 to 15 V, 7 A
• Range 2: 0 to 30 V, 4 A

Programming accuracy at 25C 5C

• Voltage: 0.05% + 10 mV
• Current: 0.2% +10 mA

Ripple & noise (20 Hz to 20 MHz)

• Normal-mode voltage: <350 Vrms/2 mVpp
• Normal-mode current: <2 mA rms
• Common-mode current: <1.5 A rms

Readback accuracy at 25C 5C

• Voltage: 0.05% + 5 mV
• Current: 0.15% + 5 mA

This content requires the Adobe Flash Player.

Get Flash

Agilent basic DC power supplies offer essential features for a tight budget. The single output, 120-200 W, GPIB, E3632A-E3634A provide dual range outputs; small, compact size for bench use; low output ripple and noise; as well as built-in measurements and basic programmable features with GPIB and RS232 interface. The Agilent 120W, GPIB, single output E3632A is a high performance supply optimized for manual and basic automated testing; and, with a combination of benchtop capabilities and system features, it is designed to help improve measurement quality and reduce test time.
