Product Description:

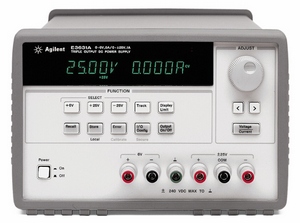

Agilent Technologies, Inc. E3631A DC power supply. Triple output: 0- +25V, 0-1A; 0- -25V, 0-1A; 0- 6V, 0-5A 80W.
Key Features & Specifications
Output Ratings
- Output 1: 0 to 6 V, 0 to 5 A
- Output 2: 0 to +25 V, 0 to 1 A
- Output 3: 0 to -25 V, 0 to 1 A
Programming Accuracy at 25C 5C
- Voltage: 0.05% + 20 mV, 0.05% + 20 mV, 0.1% + 5 mV
- + Current: 0.15% + 4 mA, 0.15% + 4 mA, 0.2% + 10 mA
Ripple & Noise (20 Hz to 20 MHz)
- Normal Mode Voltage: <350 Vrms/ 2 mV p-p, <350 V rms/2 mV p-p, <350 V rms/2 mV p-p
- Normal-mode current: <500 A rms, <500 A rms, <2 mA rms
- Common-mode current: <1.5 A rms, <1.5 A rms, <1.5 A rms
Readback Accuracy at 25C 5C
- Voltage: 0.05% + 10 mV, 0.05% + 10 mV, 0.1% + 5 mV
- Current: 0.15% + 4 mA, 0.15% + 4 mA, 0.2% + 10 mA
Description
This content requires the Adobe Flash Player.
Get Flash
Agilent basic DC power supplies offer essential features for a tight budget. The triple output, 80 W, GPIB, E3631A provides small, compact size for bench use; low output ripple and noise; built-in measurements and basic programmable features with GPIB and RS232 interface. This clean and reliable supply is designed for general purpose applications; and combines convenient benchtop capabilities with flexible system features in a compact, multi-output package.
DC power needs to be steady as a rocklike a rock for 15 years. Find out how.
|
