Product Description:
Agilent Technologies, Inc. E3615A DC power supply, low-cost. 0-20 V, 0-3 A, 60 W.
Key Features & Specifications
Output Ratings (Maximum current is derated 1% per C between 40 to 55C)
- Range 1: 0 to 20 V, 0 to 3 A
- Range 2: NA
- Power (max): 60 W
Ripple & Noise from 20 Hz to 20 MHz
- Voltage rms: 200 V
- Peak-to-Peak: 1 mV
Load & Line Regulation
Meter Resolution
- Voltage: 10 mV (0-20 V), 100 mV (>20 V)
- Current: 10 mA
Description
Replacement product: U8001A
The E3615A will be supported until January 1, 2019.
Agilent basic DC power supplies offer essential features for a tight budget. The single output, 30-60 W, E3610A-E3617A provide small, compact size for bench use; low-noise and excellent regulation; and dual-range outputs (E3610A/11A/12A). The Agilent 60W, single output E3615A is a reliable and convenient power for benchtop use, and offers solid performance and a variety of basic and enhanced capabilities.
DC power needs to be steady as a rocklike a rock for 15 years. Find out how.
|

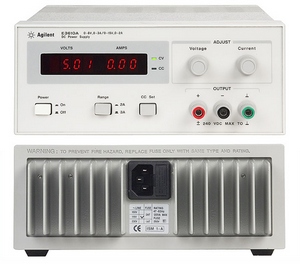

Stock photo |
