Product Description:
Agilent Technologies, Inc. 6673A DC power supply, 0-35 V, 0-60 A, 2100 W. GPIB.
Key Features & Specifications
Output Ratings
- Output voltage: 0 to 35 V
- Output current (40C): 0 to 60 A
Programming Accuracy at 25C 5C
- Voltage 0.04% + 35 mV
- Current 0.1% + 40 mA
Ripple & Noise from 20 Hz to 20 MHz
- Voltage rms: 800 V
- Peak-to-Peak: 9 mV
- Current rms: 40 mA
Description
Agilent high performance DC power supplies offer speed and accuracy for test optimization. The single output, 2000 W GPIB 6671A-6675A provide fast, low-noise outputs; analog control of output voltage and current; and fan-speed control to minimize acoustic noise.
The Agilent 2100W, GPIB, single output 6673A is a highly efficient low-noise supply that maximize test throughput and is designed to offer excellent reliability, low ripple and noise, and extremely accurate built-in measurements of voltage and current.
|

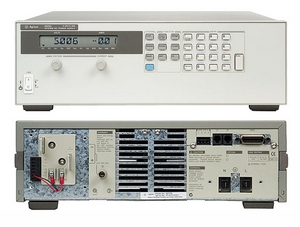

| Stock photo |
