Product Description:
Agilent Technologies, Inc. 66332A Dynamic measurement DC source, 0-20 V, 0-5 A, 100 W. GPIB, RS-232.
Key Features & Specifications
Output Ratings
- Voltage: 0 to 20 V
- Current: 0 to 5 A
- Peak Current for up to 7 ms: 5 A
Programming accuracy at 25C 5C (% of setting plus fixed)
- Voltage: 10 mV
- + Current: 2 mA
DC Readback Accuracy
- Voltage: 0.03% + 5 mV
- Current (+20 mA to + rated current): 0.2% + 0.5 mA
- Current (-20 mA to rated current): 0.2% + 1.1 mA
- Current (-20 mA to + 20 mA range): 0.1% + 2.5 A
Transient Response
- 650mV drop, <100 s transient response time
Description
The Agilent Mobile Communications DC Source 663xx series offers several features ideal for testing wireless and battery powered devices. Excellent voltage transient response ensures maximum test-system throughput by minimizing device shutdowns due to significant voltage drops in the test wiring. Built-in advanced measurement system to accurately measure battery current drains when the device operates in different modes and an Agilent-developed feature that enables cellular telephone manufacturers to detect permanently and intermittently open-sense wire connections.
The Agilent 66332A Dynamic Measurement dc Source provides dynamic measurement and analysis of voltage and current waveforms. It is ideal for testing digital wireless communications products/components because it not only provides the power for testing, but also performs the peak current measurements required to characterize the pulsed current demands of these products.
|

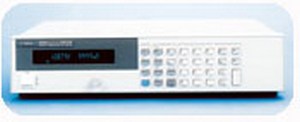

| Stock photo |
