Product Description:
Agilent Technologies, Inc. 6632B DC power supply, single-output. 0-20 V, 0-5 A, 100 W. GPIB, RS-232.
Key Features & Specifications
Output Ratings
- Output voltage: 0 to 20 V
- Output current: 0 to 5 A
Programming Accuracy at 25C 5C
- Voltage: 10 mV
- + Current: 0.05% + 2 mA
Ripple & Noise (20 Hz to 20 MHz)
- Voltage Normal Mode rms: 0.3 mV
- Voltage Normal Mode peak-to-peak: 3 mV
- Fast mode rms/ peak-to-peak: 1 mV/ 10 mV
- Current rms: 2 mA
Description
Agilent high performance DC power supplies offer speed and accuracy for test optimization. The single output, 80-100 W, GPIB 6631B-6634B provide fast, low-noise outputs; programmable active down-programmer sinks the full rated current; dual-range, precision low current measurement; as well as optional isolation and polarity reversal relays. The Agilent 100W, GPIB, single output 6632B is a versatile medium-power solution for automated applications that reduces development time with a combination of benchtop and system features designed for demanding design and test requirements.
|

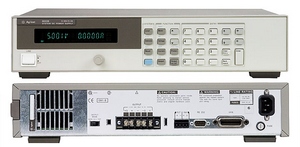

| Stock photo |
