Product Description:
Agilent Technologies, Inc. 66000A Modular Power System Mainframe, 1200 W max, 8 slots, GPIB
Key Features & Specifications
- 1200 W mainframe
- Modular system permits up to 8 outputs of 150W per output in 4U of rack space
- Reconfigure fast with easily swappable modules
Description
Agilent high performance DC power supplies offer speed and accuracy for test optimization. The Agilent 66000 modular power system simplifies test-system assembly, cabling, programming, debugging and operation. The 66000A is 4 U, 8 slot mainframe that accepts 1 to 8 modules below in any combination. Modules are ordered separately.
Power Modules
ModelMax PowerVoltageCurrentDescription
| 66101-J03* | 128W | 5.7V | 20A | DC power module |
| 66101A | 128W | 8V | 16A | DC power module |
| 66101A-J05* | 128W | 12V | 12A | DC power module |
| 66102A | 150W | 20V | 7.5A | DC power module |
| 66102A-J05* | 150W | 15V | 10A | DC power module |
| 66103A-J12* | 150W | 24V | 6A | DC power module |
| 66103A-J09* | 150W | 28.5V | 5.5A | DC power module |
| 66103A | 150W | 35V | 4.5A | DC power module |
| 66103A-J01* | 150W | 37V | 4.5A | DC power module |
| 66103A-J02* | 150W | 40V | 3.6A | DC power module |
| 66104A-J09* | 150W | 55V | 3A | DC power module |
| 66104A | 150W | 60V | 2.5A | DC power module |
| 66105A | 150W | 120V | 1.25A | DC power module |
| 66105A-J01* | 44W | 35V | 1.25A | DC power module |
| 66106A | 150W | 200V | 0.75A | DC power module |
*This item has special order options.
Accessories
| 66001A | Modular Power System Keyboard | The 66001A is a detachable keyboard that provides manual control of the 66000 MPS. It is suitable for program development and troubleshooting. |
| 66002A | Rack Mount Kit for 66001A | The 66002A Rack Mount Kit allows the 66001A Keyboard to be installed in standard ATE rack. |
|

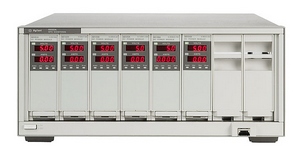

| Stock photo |
