Valcom Manufacturing Group Inc. AS-3772B-U 35 FT Aluminum Whip Antenna

AS-3772B-U - Valcom Manufacturing Group Inc. 35 FT Aluminum Whip Antenna

Warranty: 1 Year
Shipping: FOB Origin
Ships in: 24 Weeks
Country of Origin: Canada
SIN: 334515
Part No:
GSA Schedule: Exp.:02 Feb. 2025

U.S. Government, Military
and Contractors only
Price: Do you qualify for GSA Schedule?

Description

Valcom Manufacturing Group Inc. 35 FT Aluminum Whip Antenna

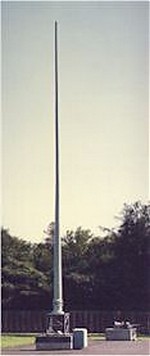

The AS-3772B/U 35 foot aluminum whip antenna is designed and built to meet the US Navy requirements for shipboard antennas, specifically MIL-A-29517(EC). It meets or exceeds these requirements in every respect.

The antenna is used for communications in the 2 to 30 MHz frequency range and can be installed and operated in the vertical, tilted or horizontal positions.

The antenna consists of a tapered aluminum radiating element and an integral fibreglass insulator and base mounting flange. It is a two piece antenna which has three side feed points. The integral insulator and base mounting flange is bonded to the bottom of the radiating element. A drip shield is provided just below the lower feed point.

The mechanical strength of the integral insulator and mounting flange is achieved with a patented process using high strength filament fibreglass and epoxy resin.

Additional Details

Type: New commercial
Calibration: New
