Valcom Manufacturing Group Inc. AS-3770B-U 18 FT Aluminum Whip Antenna

AS-3770B-U - Valcom Manufacturing Group Inc. 18 FT Aluminum Whip Antenna

Warranty: 1 Year
Shipping: FOB Origin
Ships in: 24 Weeks
Country of Origin: Canada
SIN: 334515
Part No:
GSA Schedule: Exp.:02 Feb. 2025

U.S. Government, Military
and Contractors only
Price: Do you qualify for GSA Schedule?

Description

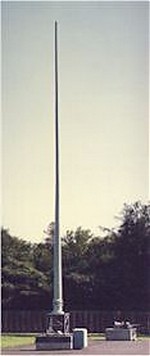

Valcom Manufacturing Group Inc. 18 FT Aluminum Whip Antenna


The AS-3770B/U 18 foot aluminum whip transmitting/receiving antenna is designed and built to meet the US Navy requirements for shipboard antennas. The antenna Meets MIL-S-901 grade A for shock; MIL-STD-167 for vibration.

The antenna is used with general HF communications equipment. The antenna provides vertically polarized, omni-directional azimuth radiation from 10 to 30 MHz when the antenna is operated in a twin whip and tuner configuration, such as the OE-418A(V)1/SRC . It can also be used singularly for general receiving or transmitting applications.

The antenna consists of a tapered aluminum radiating element and an integral fibreglass insulator and base mounting flange. It is a single piece antenna which has three side feed points. The integral insulator and base mounting flange is bonded to the bottom of the radiating element. A drip shield is provided just below the lower feed point.

The mechanical strength of the integral insulator and mounting flange is achieved with a patented process using high strength filament fibreglass and epoxy resin.

Additional Details

Type: New commercial
Calibration: New
