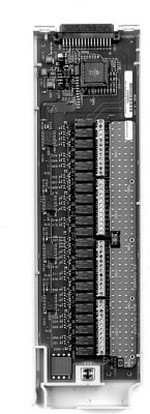

Keysight Technologies Inc. Single-Ended Multiplexer Module for 34970A and 34972A, 40-Channel
Use the Keysight 34908A module for the 34970A/34972A Data Acquisition/Switch Unit for the greatest density in common-low applications, such as battery test, component characterization, and benchtop testing. Each module switches 40 one-wire inputs. All two-wire internal measurements except current are supported. The module low connection is isolated from earth and can float up to 300 V.
Standard Product Includes:
- 1 34908A, 40-Channel Single-Ended Multiplexer Module
- 1 Certificate of Calibration
- 40 Channel Single-Ended Multiplexer
- Single-wire switching for common-low applications
- 60 ch/s scanning
- Built-in thermocouple reference junction
