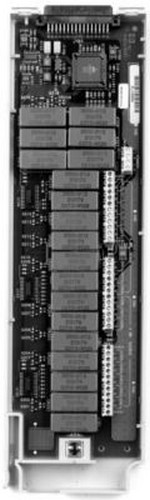

Keysight Technologies Inc. Reed Multiplexer Module for 34970A, 16-Channel
The Keysight 34902A module for the 34970A/34972A Data Acquisition/Switch Unit employs reed relays to achieve scan rates up to 250 channels-per-second. Use this module for high-throughput automated test applications as well as high-speed data logging and monitoring tasks.
Sixteen two-wire inputs switch up to 300 V. Two-and four-wire channels may be mixed on the same module. User provided shunt resistors are required for current measurements.
Standard Product Includes:
- 1 34902A, 16 Channel Multiplexer Module
- 1 Certificate of Calibration
- 16 Channel Multiplexer
- Two- and four-wire scanning
- 250 ch/s scanning
- Built-in thermocouple reference junction
