Product Description:

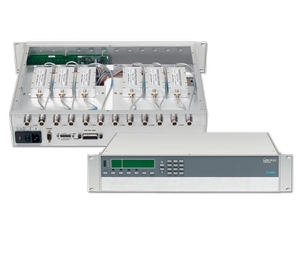

Aeroflex/Weinschel 8311-202-2-F Programmable Attenuator Unit, Relay Switched, 19' Rack:18GHz,SMA Female,2ch,121dB,Front
Performance Characteristics of the 8311-202-2-F
| Type |
Programmable Attenuator |
| Minimum Frequency |
0 Hz |
| Maximum Frequency |
18 GHz |
| Maximum Standing Wave Ratio |
1.95 dB |
| Connector type (main signal) |
SMA Female |
| Basic Model |
8311 |
| Insertion Loss |
5.25 dB |
| Attenuation |
121 dB |
| Step Size |
1 dB |
| Connector Location |
Front |
| Number of Channels |
2 |
| Attenuator Model Number |
150T-11+150T-110 |
