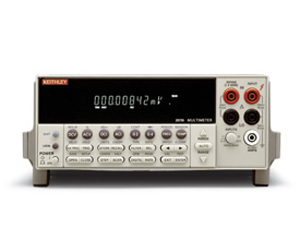

Product specs for Keithley Instruments 2010

Product Description:

Keithley Instruments 2010 Low Noise 7-1/2 Digit DMM and 1751 Test Leads

10-ch scanner Mainframe
Dry circuit/low powe
15 Measurementm functions
Built-in ratio Measurement
Easy to use
100 Vrms noise floor

Form Factor	Benchtop
Number of Digits (Max)	7.5 digits
DC Volts Minimum Range	100 mV
DC Volts Maximum Range	1000 V
DC Volts No. of Ranges	5 QTY
DC Volts Range Steps	1/10/100
DC Volts Minimum Resolution	10 nV
DC Volts Maximum Resolution	100 uV
DC Volts Basic 1 yr accuracy	0.0007 %
AC Volts Minimum Range	100 mV
AC Volts Maximum Range	750 V
AC Volts No. of Ranges	5 QTY
AC Volts Range Steps	1/10/100
AC Volts Minimum Frequency	3 Hz
AC Volts Maximum Frequency	300 kHz
AC Volts Minimum Resolution	0.1 uV
AC Volts Maximum Resolution	1 mV
True Rms (?)	Yes
DC Current Minimum Range	10 mA
DC Current Maximum Range	3 A
DC Current No. of Ranges	4 QTY
DC Current Range Steps	1/10/100
DC Current Minimum Resolution	10 nA
DC Current Maximum Resolution	10 uA
AC Current Minimum Range	1 A
AC Current Maximum Range	3 A
AC Current No. of Ranges	2 QTY
AC Current Range Steps	1/10/100
AC Current Minimum Resolution	1 uA
AC Current Maximum Resolution	10 uA
Resistance 2 wire/4 wire	2 Wire,4 Wire
Resistance Minimum Range	100 Ohm
Resistance Maximum Range	100 MOhm
Resistance No. of Ranges	7 QTY
Resistance Range Steps	1/10/100
Minimum Frequency	3 Hz
Maximum Frequency	500 kHz
