Product specs for Extech Instruments Corp. 380224

Product Description:

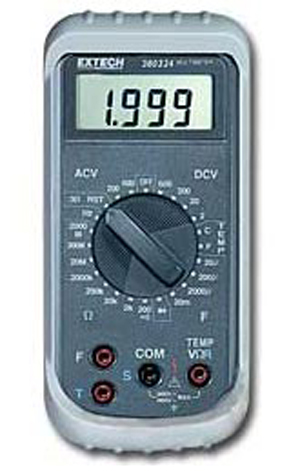

Extech Instruments Corp. 380224 MULTIMETER, HEAVY DUTY PHASE INDICATOR/TEMP

3-Phase Power Indicator
Built-In Stand
Audible Continuity Test
Diode Tests
Temperature Range: -20 to 400 Deg.C
Capacitance Range: 20uF-20mF

Performance Characteristics of the 380224

Form Factor	Handheld
Number of Digits (Max)	3.5 digits
DC Volts Minimum Range	2 V
DC Volts Maximum Range	600 V
DC Volts No. of Ranges	4 QTY
DC Volts Range Steps	1/10/100
DC Volts Basic 1 yr accuracy	1.2 %
AC Volts Minimum Range	200 V
AC Volts Maximum Range	600 V
AC Volts No. of Ranges	2 QTY
AC Volts Basic 1 Year Accuracy	2.9 %
True Rms (?)	No
Resistance Minimum Range	200 Ohm
Resistance Maximum Range	2000 MOhm
Resistance No. of Ranges	8 QTY
Resistance Range Steps	1/10/100
Resistance Basic 1 yr accuracy	1.0 %
Minimum Frequency	10 Hz
Maximum Frequency	100 kHz
Frequency Accuracy	0.5 %

Programmability/Connectivity of the 380224

User Interface

Not Applicable

380224 Compliance

CE Compliance	Compliant
UL Compliance	Compliant

380224 Power Requirements

Input Power	Battery Powered (see Battery Details)
Battery Requirement	9 V

380224 Physical Dimensions

• Width: 69 mm(2.71 in)
• Height: 145 mm(5.7 in)
• Length: 38 mm(1.49 in)
• Weight: .34 kg(.74 lb)

380224 Standard Accessories

• 1 /Multimeter Test Leads /Qty:1
• 2 /Protective Holster /Qty:1
• 3 /Color Coded Test Leads /Qty:1
• 4 /Temperature Probe /Qty:1
• 5 /9V Battery /Qty:1
• 6 /Alligator Clips /Qty:1
