Product Description:

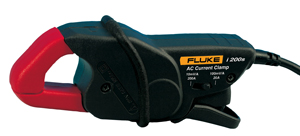

Fluke I200S 200 AMP CLAMP, VOLTAGE OUTPUT, BNC (P/N 664760)
- Dual range 20A and 200A ac current clamp
- Output via a safety insulated BNC connector
- Dual banana to BNC adapter included
- Measuring range 0.1 to 24A and 0.5 to 240A
- 100 mV/A outputin the 20A range
- 10 mV/A output in the 200A range
- Includes BNC connector
- Use with any oscilloscope, power analyzer or ScopeMeter
- Dual banana to BNC adapter is included for use with DMMs
- Maximum current 240A ac
- 40 Hz to 10 kHz frequency response
- Jaw opening 21 mm
- Maximum conductor size 20 mm dia. or busbar 20 x 5 mm
- EN61010, CAT III 600V
- One year warranty
Performance Characteristics of the I200S
| Form Factor |
Probe |
| Type |
Current Clamp |
| Minimum Frequency |
40 Hz |
| Maximum Frequency |
10 kHz |
| AC Current Minimum Range |
0.5 A |
| AC Current Maximum Range |
240 A |
| Connector type (main signal) |
Banana |
Programmability/Connectivity of the I200S
| User Interface |
Not Applicable
|
I200S Compliance
| CE Compliance |
Not on file
|
| UL Compliance |
Not compliant
|
| Safety Issue |
Safety shrouded banana plugs for use with DMMs or any other current measuring device which has banana inputs
|
I200S Power Requirements
I200S Physical Dimensions
- Width: (N/A)
- Height: (N/A)
- Length: (N/A)
- Weight: 1 kg(2.2 lb)
