Product Description:

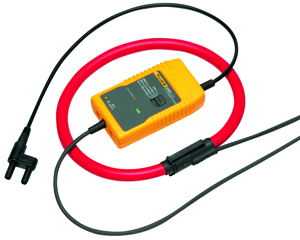

Fluke I2000FLEX 2000 FLEX CURRENT CLAMP (P/N 664752)
- Measures up to 2000A ac
- Switchable between 200A and 2000A
- Includes a 62 cm (24.4") circumference flexible probe
- Connector for coupling and decoupling around a conductor
- Includes BNC connector
- Use with any oscilloscope, power analyzer or ScopeMeter
- Dual banana to BNC adapter is included for use with DMMs
- CAT III 600V
- 10 mV/A output signal in the 200A range
- 1 mV/A output signal in the 2000A range
- Bandwidth (-3dB): 1 Hz to 20 kHz
- 9V alkaline battery, installed
- At least 100 hour battery life
- One year warranty
Performance Characteristics of the I2000FLEX
| Form Factor |
Probe |
| Type |
Current Clamp |
Programmability/Connectivity of the I2000FLEX
| User Interface |
Proprietary
|
I2000FLEX Compliance
| CE Compliance |
Not on file
|
| UL Compliance |
Not compliant
|
I2000FLEX Power Requirements
I2000FLEX Physical Dimensions
- Width: (N/A)
- Height: (N/A)
- Length: (N/A)
- Weight: 1 kg(2.2 lb)
