Product specs for B+K Precision 2160A

Product Description:

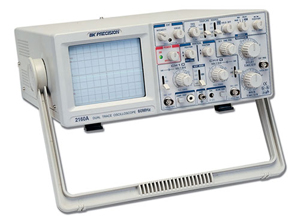

B+K Precision 2160A 60 MHZ SCOPE W/PROBES

The B+K Precision 2160A oscilloscope is a graph-displaying device – it draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis.

The B+K Precision 2160A oscilloscope's simple graph can tell you many things about a signal, such as: the time and voltage values of a signal, the frequency of an oscillating signal, the “moving parts” of a circuit represented by the signal, the frequency with which a particular portion of the signal is occurring relative to, other portions, whether or not a malfunctioning component is distorting the signal, how much of a signal is direct current (DC) or alternating current (AC) and how much of the signal is noise and whether the noise is changing with time.

Band Width: 60 MHz
Deflection Factor: 5mV to 5V/div
No.of Channels: 2
Max.Sweep Rate: 0.1us to 2s/div
Cursors & Readout: NO
Delayed Sweep/Dual Time Base: Yes
Signal Delay Line: Yes
V-Mode Alternate Trigger: Yes
Video Sync: Yes

Performance Characteristics of the 2160A

Form Factor	Benchtop
Bandwidth	60 MHz
Number of Channels	2 ch
Min. Vertical Sensitivity	5 mV/div
Maximum Vertical Sensitivity	5 V/div
Main time base - lowest	100 ns/div
Main time base - highest	2 s/div
