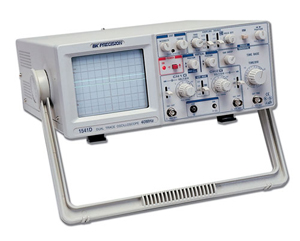

B+K Precision 1541D 40MHZ 2 CHANNEL OSCILLOSCOPE

The B+K Precision 1541D oscilloscope is a graph-displaying device – it draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis.

The B+K Precision 1541D oscilloscope's simple graph can tell you many things about a signal, such as: the time and voltage values of a signal, the frequency of an oscillating signal, the “moving parts” of a circuit represented by the signal, the frequency with which a particular portion of the signal is occurring relative to, other portions, whether or not a malfunctioning component is distorting the signal, how much of a signal is direct current (DC) or alternating current (AC) and how much of the signal is noise and whether the noise is changing with time.

1mV/div sensitivity
19 calibrated sweeps
Video sync separators
X10 sweep magnification

Performance Characteristics of the 1541D

Form Factor	Benchtop
Bandwidth	40 MHz
Rise time	8.8 ns
Number of Channels	2 ch
Min. Vertical Sensitivity	5 mV/div
Maximum Vertical Sensitivity	5 V/div
Vertical(or Deflection Factor) Accuracy	5 %
Input Impedance	1 MOhm
Maximum Input Voltage	250 V(dc+p
B Sweep Time Base (low)	0.2 s/div
B Sweep Time Base (high)	0.2 s/div
Timebase accuracy	3 %
Trigger Source	External,Internal
