Product specs for B+K Precision 117B

Product Description:

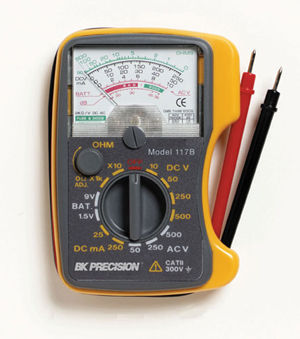

B+K Precision 117B ANALOG POCKET METER

Performance Characteristics of the 117B

Form Factor	Handheld
DC Volts Minimum Range	10 V
DC Volts Maximum Range	500 V
DC Volts No. of Ranges	4 QTY
DC Volts Range Steps	1/10/100
AC Volts Minimum Range	50 V
AC Volts Maximum Range	500 V
AC Volts No. of Ranges	3 QTY
AC Volts Range Steps	1/10/100
True Rms (?)	No
DC Current Minimum Range	25 mA
DC Current Maximum Range	250 mA
DC Current No. of Ranges	2 QTY
DC Current Range Steps	1/10/100
Resistance Minimum Range	10 kOhm
Resistance Maximum Range	1 MOhm
Resistance No. of Ranges	2 QTY
Resistance Range Steps	1/10/100

Programmability/Connectivity of the 117B

User Interface

Proprietary

117B Compliance

CE Compliance	Not on file
UL Compliance	Not compliant

117B Power Requirements

Input Power

Not required

117B Physical Dimensions

• Width: 80 mm(3.14 in)
• Height: 120 mm(4.72 in)
• Length: 30 mm(1.18 in)
• Weight: .5 lb(1.1 lb)

117B Standard Accessories

• 1 /1.5V AA Batteries /Qty:1
• 2 /Test Leads /Qty:1
• 3 /Instruction Manual /Qty:1
