Rohde & Schwarz SM300

Product Description:

Rohde & Schwarz SM300 Vector signal generator 9 kHz - 3 GHz vector modulation/AM/FM/PM

The Rohde & Schwarz SM300 signal generator is an electronic instrument that generates repeating electronic signals. It contains an electronic oscillator, a circuit that is capable of creating a repetitive waveform.

Professional signal generator for production, lab and service applications. Superior RF characteristics - fast, accurate, and repeatable performance Color display enhances usability and visibility.9 kHz to 3 GHz frequency range covers all major communications standards¿ frequency bands I/Q modulation capabilities enabling signal generation to the standard of current and future digital mobile radio generations All analog modulation standards secures backwards compatibility with existing communication systems Identical half 19"housing as the FS300 (3 GHz Spectrum Analyzer), enables side-by-side rack mounting and bench top stacking USB interface offers fast and cost effective remote control for production, regressive testing and remote signal generation Synchronization to the FS300 Spectrum Analyzer to create a Scalar Network Analyzer system RF frequency and level sweeps as well as LF frequency sweep enables fast and easy characterization of components, modules and systems Applications General lab use EMC applications Production of LF & RF/microwave components, modules, antennas and systems QA testing of LF & RF/microwave components, modules, antennas and systems General field use for communications installation and maintenance Educational tool for technical universities and other institutions Signal source for outdoor and indoor RF survey tests The SM300 Signal Generator is a compact RF tool offering RF specifications, features, and capabilities usually found in larger, more costly bench-top Signal Generators. In addition, the SM300 Signal Generator comprises the latest technology including a color display, menu driven user interface and fast and a cost effective USB interface for remote control.

Features

  • Frequency Range: 9 kHz to 3 GHz
  • AM, FM, Phase, Pulse and I/Q modulation
  • NF Output: 20 Hz to 80 kHz
  • Phase Noise: <-95 dBc (1 Hz) at 20 kHz offset
  • Level Uncertainty:< 1dB (at levels >-120 dBm)
  • Graphical User Interface
  • USB Interface

More Rohde & Schwarz savings

RF & Bench Essentials Reference Guide

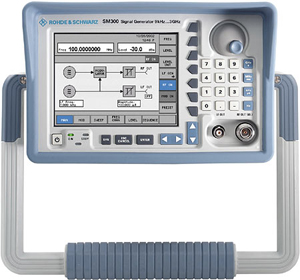

Rohde & Schwarz SM300
