Product Description:

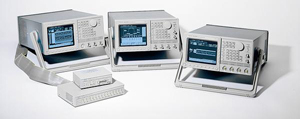

Tektronix DG2030 0.1 Hz -400 MHz Data Pattern Generator
0.1-409.6 Mbits/s Data Rate
7 digit Resolution
90-256 Kbits Data Depth
Data Width 4 bits
Performance Characteristics of the DG2030
| Form Factor |
Mainframe |
| Type |
Pattern |
| Number of Channels |
4 ch |
| Maximum Frequency |
1100 MHz |
| Minimum Pulse Width |
10 ns |
| Maximum Output Voltage |
2.5 V |
| Output Accuracy |
0.0001 % |
| Minimum Period |
2.5 ns |
| Maximum Period |
2.5 ns |
| Trigger Source |
External,Internal |
| Output Impedance |
50 Ohm |
Programmability/Connectivity of the DG2030
| User Interface |
Proprietary
|
| Ports to Peripheral Devices |
GPIB,RS232
|
DG2030 Compliance
| CE Compliance |
Compliant
|
| UL Compliance |
Compliant
|
DG2030 Power Requirements
| Input Power |
Universal (Auto Sense and Switch)
|
DG2030 Physical Dimensions
- Width: 362 mm(14.25 in)
- Height: 164 mm(6.45 in)
- Length: 491 mm(19.33 in)
- Weight: 9.7 kg(21.38 lb)
Options for DG2030
| Option |
US List Price |
| 01 / 8 Channel Output |
$4,995
|
