Product Description:

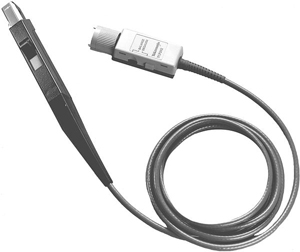

Tektronix TCP202 PROBE, CURRENT; DC COUPLED, 50 MHZ BW, 15 AMP MAX DC. TEKPROBE INTER FACE - CERTIFICATE OF TRACEABLE CALIBRATION STANDARD
- Easy Current Measurements
- Probe Connects Directly to TDS Scope through TEKPROBE™ BNC Interface
- Split Core Construction for Easy Circuit Connection
- DC to 50MHz Bandwidth
- 15 Amps DC + Peak AC Current
- 50 Amps Peak Pulse Current
- 500 x 10-6 Amp* Sec Product
- Safety Certified<
- Prop Delay: 17ns
- Rise Time: </= 7ns
- Measurement Accuracy: 3%
Performance Characteristics of the TCP202
| Form Factor |
Probe |
| Instrument application |
Oscilloscope |
| Measurement Parameter |
Current |
| Probe type |
Passive |
| Minimum Frequency |
0 MHz |
| Maximum Frequency |
50 MHz |
| Measurement Accuracy |
3 % |
| Input Impedance |
0.002 Ohm |
| Minimum Input Current |
0 A |
| Maximum Input Current |
15 Arms |
| Cable Length |
220 cm |
| Connector type (main signal) |
BNC(f) |
Programmability/Connectivity of the TCP202
| User Interface |
Proprietary
|
TCP202 Compliance
| CE Compliance |
Compliant
|
| UL Compliance |
Compliant
|
TCP202 Power Requirements
TCP202 Physical Dimensions
- Width: (N/A)
- Height: (N/A)
- Length: (N/A)
- Weight: .19 kg(.41 lb)
TCP202 Standard Accessories
- 070-9542-00 /Instruction manual /Qty:1
- 070-9543-02 /Reference manual /Qty:1
